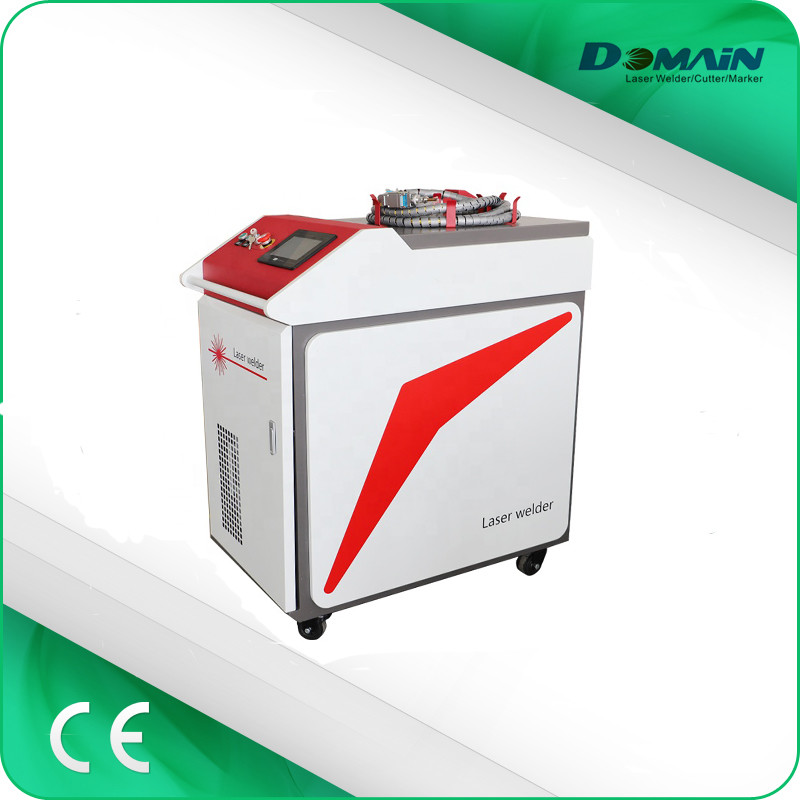

AC380V Handheld 1KW Fiber Laser Welding Machine For Stainless Steel

Ask Lasest Price
Brand Name :	DOMIANLASER
Model Number :	CY-W1000FS
Certification :	CE,FDA,ISO
Price :	0-11999
Payment Terms :	L/C, T/T, Western Union, D/A
Supply Ability :	100 units per month
Delivery Time :	3-7working days

Add to Cart

Product Details
Company Profile

AC380V Handheld 1KW Fiber Laser Welding Machine For Stainless Steel

Automatic Gun Hand Held Welding Fiber Laser Welder Machine For Stainless Steel Metal

AC380V Handheld 1KW Fiber Laser Welding Machine For Stainless Steel

Significant advantages of handheld laser welding:

Various welding of non-standard metal parts, manual welding is more flexible;

Perfect welding quality, small deformation, high penetration, no weld penetration;

Various welding process methods, spot welding, seam welding, and stitch welding Etc.;

High welding efficiency, replacing traditional TIG welding equipment;

Maximum welding cost, no consumables, energy saving and environmental protection

Technical parameter:

Equipment model	CY-W500FS	CY-W1000FS	CY-W1500FS	CY-W2000FS
Rated output power	500W	1000W	1500W	2000W
Power adjustment range	500W±2%	1000W±2%	1500W±2%	2000W±2%
Laser type	Continuous fiber laser
Laser wavelength	1070nm
FM	0～5Khz
Spot diameter	5～7mm
Welding speed range	1～120mm/s
Welding gap requirements	≤0.5mm
Wire width	≤4mm	≤5mm
Welding thickness	﹤1.2mm stainless steel ﹤0.8mm Carbon steel	﹤2.5mm stainless steel ﹤1.5mm Carbon steel ﹤1mm aluminum	﹤4mm stainless steel ﹤2.5mm Carbon steel ﹤2mm aluminum	﹤5mm stainless steel ﹤3.5mm Carbon steel ﹤3mm aluminum
Beam quality	M²﹤1.1	M²﹤1.15	M²﹤1.2	M²﹤1.2
Output fiber length	Standard 10m / customizable lengthening
Fiber bending radius	100mm
Way of working	Continuous CW/modulation
Working environment temperature range	15～35°C/<70% without condensation
Weld head operating mode	Normal / hand-held swing welding mode
Power Consumption of the Whole Machine	4KW	6KW	9KW	12KW
Cooling mode	Built-in chiller			External chiller
Power requirements	AC220V±10%/50Hz/40A	Three-phaseAC380V±10%/50Hz/40A

Laser Model	Fiber
Repetition Rate	continuous
Maximum welded	≤2000w
Laser power	500w-2000w ( Optiona)
Fiber diameter	25um -100um (Optiona)
Laser welding penetration	0.39mm-4.57mm
Laser welding speed	≤20m/min
Aiming and positioning	Red light indication
Cooling way	water cooling
Welding material	Carbon steel, stainless steel, galvanized steel, aluminum, etc
Operating temperature	10℃-40℃

Main Features

1) The hand-held welding gun head is flexible and convenient for
outdoor welding.
2) The operating mode of the hand-held welding tip allows the
workpiece to be welded at any angle anywhere.
3) Intelligent switching of dual light paths, evenly distributing
energy according to different time and different light.
4) Suitable for all kinds of complicated welding methods and spot
welding of various equipment.
5) The operation is simple, it can be welded at the beginning, and
it is not necessary to cost a large amount of money to weld the
master.
6) No welding station is required, the space is small, the welding
products are diversified, and the product shape is flexible.
7) Low material costs, low energy consumption and low maintenance
costs.
