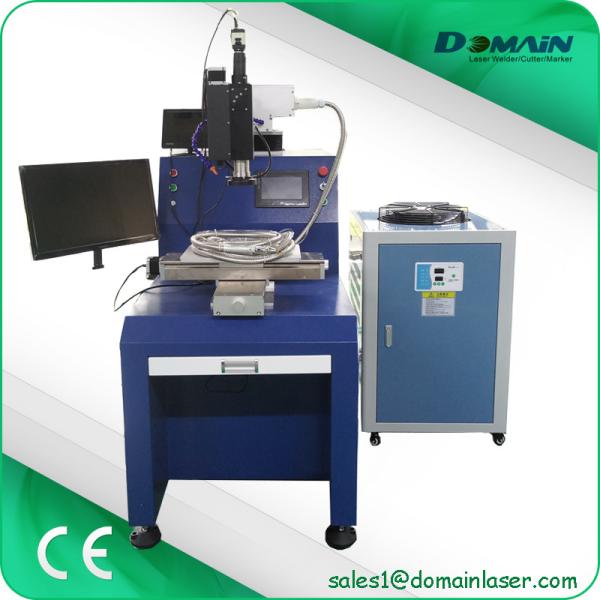

Yag Automatic Rotary Handy Pen Laser Welding Machine With Steel
Pipe 400w 500w
Introduction
Automatic Laser Welding Machine Price with ce is suitable for
welding of thin plates within 1mm; 3D work bench and the master
unit are integrated; can weld space curve and welds of high
variable, applied in medical, electronics, battery, instrument,
etc.
Feature
Using the latest control system, more stability, software is more
easy to operate,meet the needs of large and complex products
welding requirements
High production efficiency and high welding speed,realizing
automatic mass production on the production line
Can weld point, line, circle, elliptical arc, square and other
arbitrary Planar orbit
Has the function of automatic focusing and rotating, 3D space of
arbitrary shape of welding products
Laser pen lighter than AMADA pen with 5 meters imported fiber cable
Application
Sanitary industry: pipe joints, adjustable fittings, tees, valves
Battery industry: lithium-ion battery, battery, electrode laser
welding
Glasses Industry: stainless steel, titanium alloy materials glasses
of snap, and frame position precision welding
Hardware industry: impeller, water bottle, water cupwine pot ,
stainless steel Bowl, sensors, diodes, aluminum, cell phone
batteries, door knobs stirrer, shelves and other complex stamping,
welding of cast parts.
Parameter
| Model No. | CY-WD400F |
| Laser Power | 400W |
| Laser Source | Nd: YAG pumped by xenon lamp |
| Pulse Width | 0.2~20ms |
| Pulse Frequency | 0~100Hz |
| Laser Welding Depth | ≤0.8mm |
| Adjusting rang of light spot | 0.1-3.0mm |
| Cooling System | 2HP industrial water chiller |
| Power Supply | 380V±5%,50Hz, 60Hz |
| Power Consumption | 14KW |
| Single Pulse Energy | 100J |
| Observing System | CCD and LCD display, with red pointer |
| Control System | Industrial PC with CNC 2000 software |
| 3-axis Travel Distance | X=300mm,Y=200mm,Z=300mm (all electrical, precision ±0.02mm) |
| Data Memorization | 100 groups |
| Illumination | LED circle lamps |
| Language Display | English & Chinese |
| Shield Gas Supply | 1line, argon |
| Running Environment | Tem 5°C-30°C, Hum 5%-85% |
