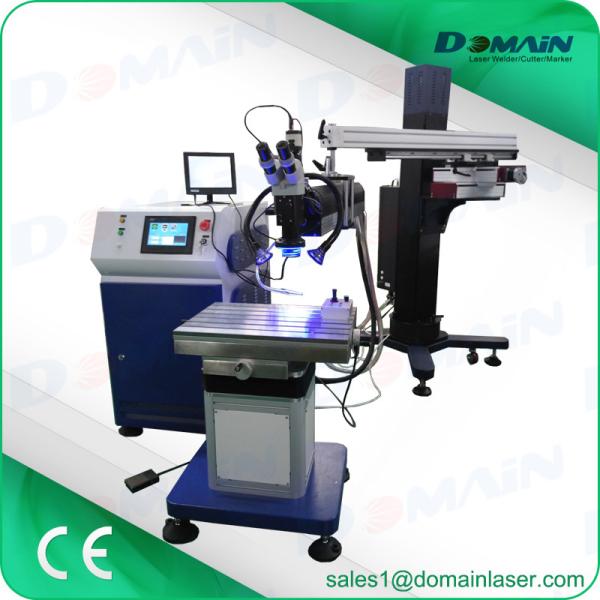

Repair Mold / Mould Welding Machine Laser For Stainless Steel Plate
And Tube
Introduction
Equipped with industrial touch screen control system, the welding
joints diameter is only 0.2-0.5mm. No deformation and the material
can be etched without any damage. No trachoma, no stomata with
smooth welding edge. You can re-use the original mold after repair,
which will greatly improve efficiency and reduce cost.
Domain laser, offering laser application solutions, its laser
welding machine series has been developed for more than 10 years.
Self developed and core international key parts,the welding machine
with lowest failure rate win trust from customers at home and
abroad. You are sure to be satisfied with our welding machine.
Feature
British imported ceramic concentrating cavity, corrosion resistant,
high temperature resistant
Intelligent control, easy to operate, fast
The laser head can be rotated 360 degrees
Workbench can be electrically lifted and lowered, three-dimensional
movement
Feature Main Function
Laser control system:
Mold laser spot welder is under the control of double closed loop
by inside improved industrial controlling micro-computer so the
stability and the running ability surpass products that controlled
by monolithic integrated circuit. The laser controlling system can
control the power source profile precisely pre-set optimized.
Gas protecting system:
synchronous argon protecting system controlled by micro-computer
act better, it make the welding connection even firmer and
artistic. Being controlled to keep synchronous transmission with
laser can save the argon at the highest level.
Observing system:
It's equipped with special-purpose microscope observing system with
cross cursor. It has high speed electron flitting device to protect
the operator's eyes from being hurt.
Application & Material
It is mainly use in mould & plastic industry,which adopts laser
high energy focusing to effectively process tiny broken parts of
moulds. Such as: repairing all kinds of mould cracks,small
holes,collapse,sealing edge and other tiny parts.It has
irreplaceable advantages while compare with traditional welding
like high accuracy rate,high speed,depth,strength,no holes after
processing,can polish into shining surface after welding,especially
suitable to repair mould which require polish
Parameter
| Laser power | 300W | 400W | 500W |
| Laser Source | Pulsed Nd:YAG |
| Pulse Width | 0.3-20ms |
| Pulse Frequency | 0.1-50Hz |
| Beam Diameter | 0.1-3.0mm |
| Filler Wire Diameter | Max 0.6mm | Max 0.8mm | Max 1.0 mm |
| Cooling System | 1P water chiller | 2P water chiller | 3P water chiller |
| Power Supply | 220V50Hz (60Hz optional) | 380V/50Hz (60Hz optional) | 380V/50Hz (60Hz optional) |
| Power Consumption | 9KW | 14KW | 16KW |
| Observing System | Microscope 10X |
| 3 axis of table | X=250mm, Y=100mm, Z=200mm, XY manual, Z electrical |
| Data Memorization | 100 groups |
| Illumination | LED ring lights |
| Language Display | English & Chinese |
| Shield Gas Supply | One line quick connection (argon) |
